Perturbation Experiment Data Loading¤

Duration: 15 min | Level: Intermediate | Device: CPU-compatible

Overview¤

Demonstrates DiffBio's perturbation data loading stack, which ports features from the cell-load library to JAX/datarax. Covers loading perturbation-annotated H5AD files, mapping perturbed cells to controls, sentence-based batch sampling, zero-shot and few-shot splitting, knockdown QC filtering, differentiable count downsampling, and end-to-end pipeline orchestration.

Quick Start¤

source ./activate.sh
uv run python examples/perturbation/perturbation_data_loading.py

Key Code¤

Load perturbation data¤

from diffbio.sources.perturbation import (
    PerturbationAnnDataSource,
    PerturbationSourceConfig,
)

source = PerturbationAnnDataSource(
    PerturbationSourceConfig(
        file_path="screen.h5ad",
        pert_col="perturbation",
        cell_type_col="cell_type",
        control_pert="non-targeting",
        output_space="all",
    )
)

Full pipeline in one call¤

from diffbio.pipelines.perturbation import PerturbationPipeline, PerturbationPipelineConfig

pipeline = PerturbationPipeline(
    PerturbationPipelineConfig(
        split_mode="fewshot",
        held_out_perturbations=("BRCA1", "TP53"),
        mapping_strategy="random",
        enable_knockdown_filter=True,
        var_gene_col="gene_name",
    )
)
result = pipeline.setup(["screen.h5ad"])

for batch_indices in result.train_sampler:
    elements = [result.get_element(int(result.train_indices[i])) for i in batch_indices]

Results¤

Splitting and Group Structure¤

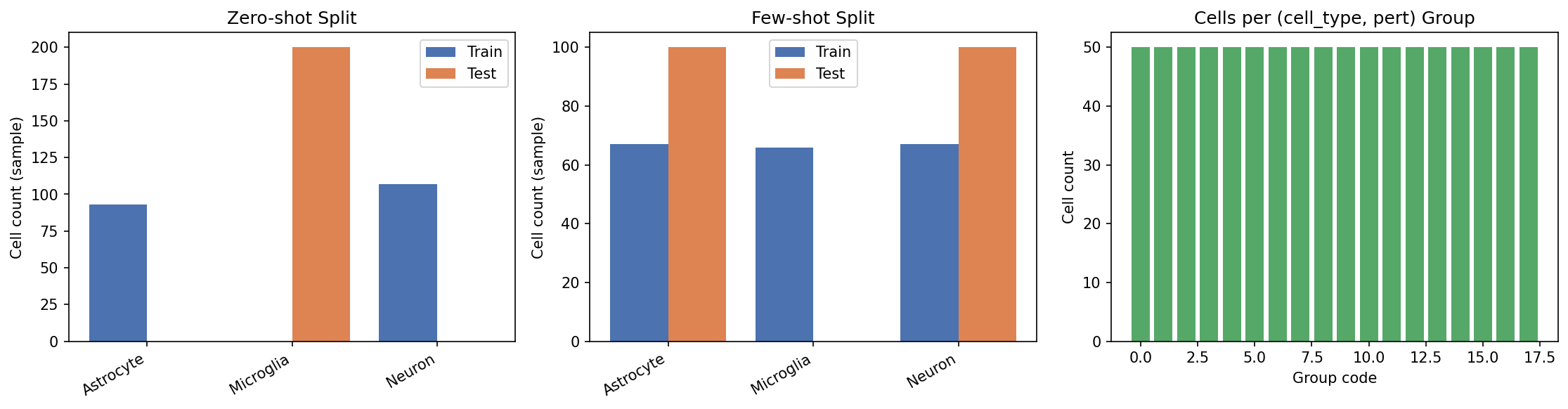

Split overview showing zero-shot vs few-shot cell type distributions and group code distribution

Left: zero-shot split holds out Microglia entirely for testing. Center: few-shot split holds out BRCA1 and TP53 perturbations. Right: cells are evenly distributed across 18 (cell_type, perturbation) groups, each with 50 cells.

Knockdown Quality Control¤

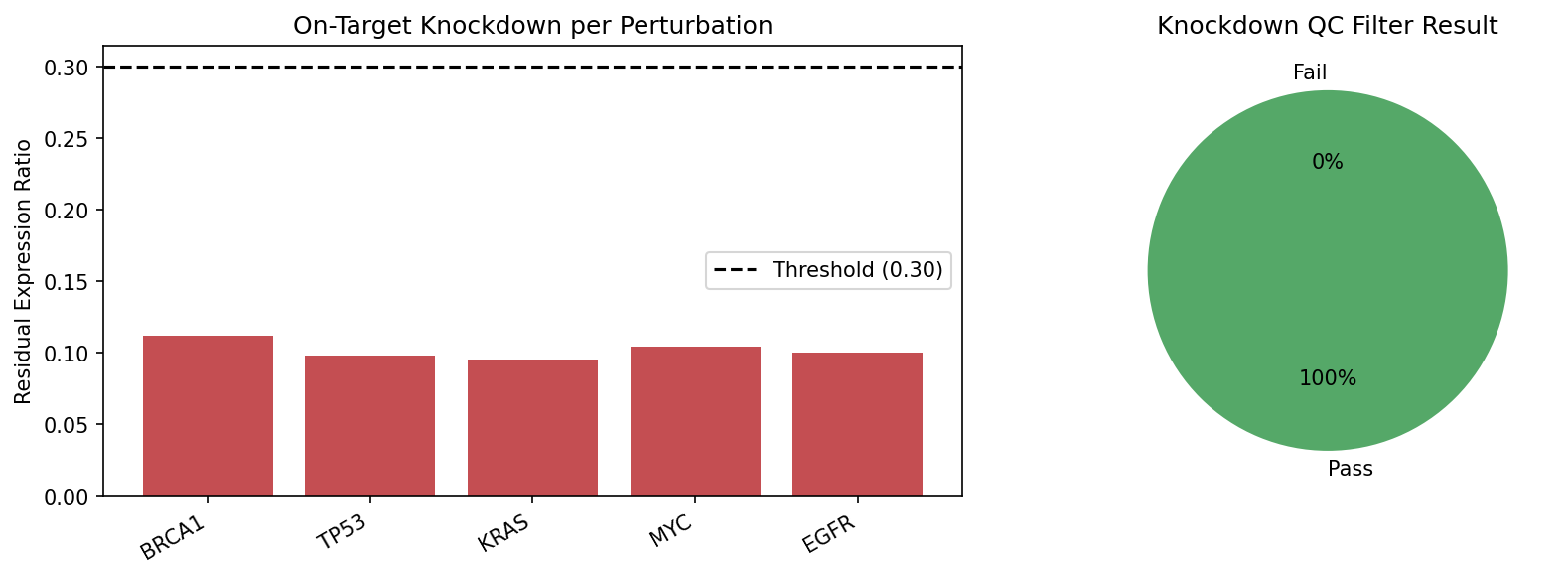

Knockdown QC showing residual expression ratios and filter pass/fail

Left: all 5 perturbations show strong knockdown (residual ratio ~0.1, well below the 0.30 threshold). Right: all cells pass QC because the synthetic knockdown signal is strong.

Differentiable Downsampling¤

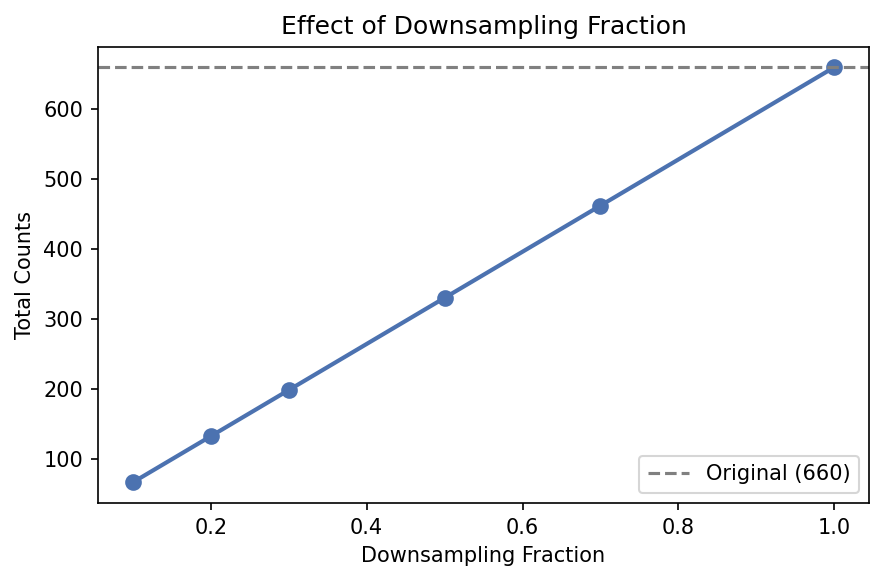

Downsampling sweep showing total counts vs fraction

Total counts scale linearly with the downsampling fraction. Gradients flow through the straight-through estimator, enabling end-to-end optimization of downsampling as part of a training pipeline.

Total cells: 900
  3 cell types x 6 perturbations x 50 cells
Loaded 900 cells
Perturbation categories: ['BRCA1', 'EGFR', 'KRAS', 'MYC', 'TP53', 'non-targeting']
Cell type categories: ['Astrocyte', 'Microglia', 'Neuron']
Control cells: 150
Unique groups: 18

Zero-shot split:
  Train: 533 cells
  Valid: 67 cells
  Test:  300 cells
  Test cell types: {'Microglia'}

Few-shot split:
  Train: 550 cells
  Valid: 50 cells
  Test:  300 cells
  Test perturbations: {'TP53', 'BRCA1'}

Gradient shape: (1, 5)
Gradient is non-zero: True
Gradient is finite: True

Components¤

Component Purpose
PerturbationAnnDataSource Load H5AD with perturbation/cell_type/batch metadata
RandomControlMapping / BatchControlMapping Pair perturbed cells to matched controls
PerturbationBatchSampler Sentence-based batch construction by (cell_type, pert)
ZeroShotSplitter / FewShotSplitter Evaluation split strategies
OnTargetKnockdownFilter 3-stage knockdown QC
ReadDownsampler Differentiable count downsampling
PerturbationPipeline End-to-end orchestration
ExperimentConfig TOML-based experiment configuration (cell-load compatible)
