Soft K-Means Clustering with Training¤

Duration: 10 min | Level: Basic | Device: CPU-compatible

Overview¤

Trains SoftKMeansClustering with optax on synthetic 3-cluster data projected from 2D into 20D. Evaluates clustering accuracy against ground truth using best-permutation matching and explores the effect of temperature on assignment sharpness.

Quick Start¤

source ./activate.sh
uv run python examples/singlecell/clustering.py

Key Code¤

config = SoftClusteringConfig(n_clusters=3, n_features=n_features, temperature=1.0)
operator = SoftKMeansClustering(config, rngs=nnx.Rngs(42))

graphdef, params, other = nnx.split(operator, nnx.Param, ...)
optimizer = optax.adam(learning_rate=0.05)
opt_state = optimizer.init(params)

for step in range(100):
    params, opt_state, loss = train_step(params, other, opt_state, data)

Results¤

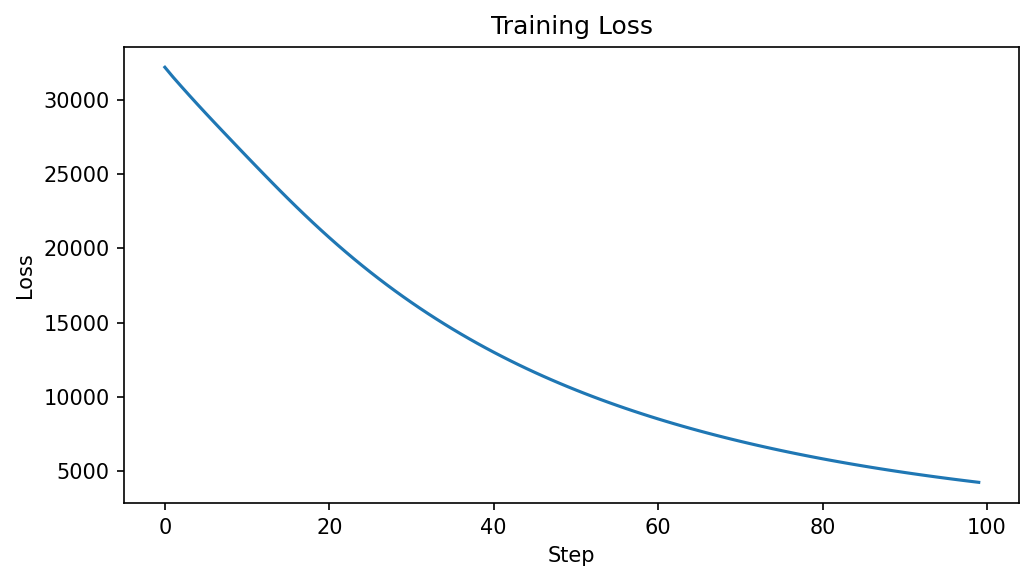

Training loss curve

The loss decreases monotonically from 32236 to 4208 over 100 steps, indicating successful centroid convergence.

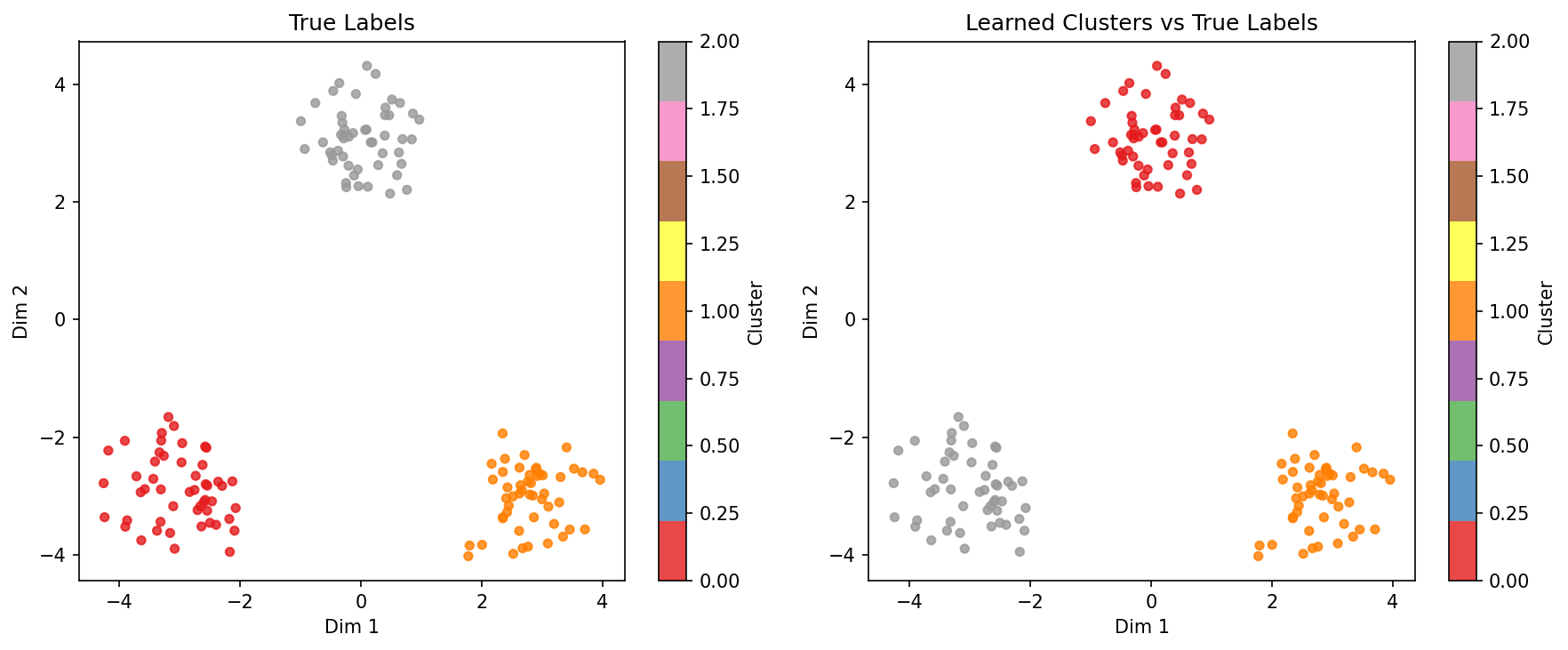

True labels vs learned clusters

The scatter plot shows perfect recovery of the 3 ground-truth clusters after training, with each learned cluster mapping 1:1 to a true cluster.

Data shape: (150, 20) (150 cells, 20 features)
True labels: 3 clusters, 50 cells each
Initial assignment distribution: [50, 100, 0]
Step   0: loss = 32236.2695
Step  20: loss = 20734.6699
Step  40: loss = 12995.3467
Step  60: loss = 8489.3184
Step  80: loss = 5796.8643
Step  99: loss = 4208.3389
Clustering accuracy (best permutation): 100.00%
Learned label distribution: [50, 50, 50]
Mean assignment entropy: -0.0000 (lower = more confident)
Gradient shape: (150, 20)
Gradient is non-zero: True
Gradient is finite: True
Assignments match (eager vs JIT): True
Temperature -> Mean max assignment probability:
  T=0.1: 0.9987
  T=0.5: 0.9380
  T=1.0: 0.8197
  T=5.0: 0.4643
