Gene Regulatory Network Inference¤

Duration: 25 min | Level: Advanced | Device: CPU-compatible

Overview¤

Applies DifferentiableGRN (GATv2 attention on a TF-gene bipartite graph) to infer regulatory weights from synthetic expression data generated by a known 5-TF, 20-gene network. Compares the inferred GRN matrix against ground truth at multiple thresholds and explores the effect of sparsity temperature and attention heads on network recovery.

Quick Start¤

source ./activate.sh
uv run python examples/singlecell/grn_inference.py

Key Code¤

from diffbio.operators.singlecell import DifferentiableGRN, GRNInferenceConfig

config_grn = GRNInferenceConfig(
    n_tfs=5, n_genes=20, hidden_dim=16, num_heads=4,
    sparsity_temperature=0.1, sparsity_lambda=0.01,
)
grn_op = DifferentiableGRN(config_grn, rngs=nnx.Rngs(0))

data_grn = {"counts": counts, "tf_indices": tf_indices}
result_grn, _, _ = grn_op.apply(data_grn, {}, None)
grn_matrix = result_grn["grn_matrix"]

Results¤

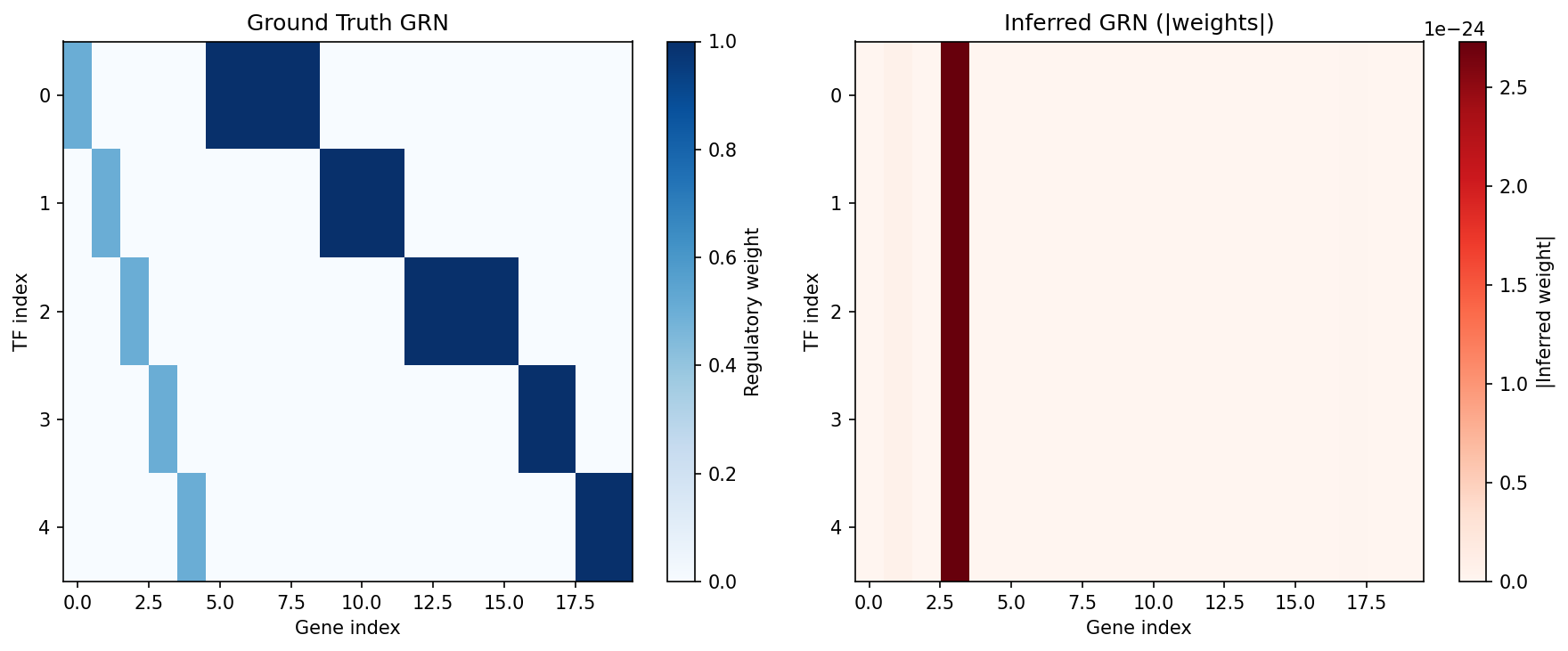

Ground truth vs inferred GRN heatmaps

Side-by-side heatmaps of the ground truth regulatory matrix (left, blue) and inferred GRN absolute weights (right, red) show that at the default sparsity temperature of 0.1 the untrained model produces a fully sparse output. Training via gradient-based optimization of a supervised regulatory loss would activate the correct edges.

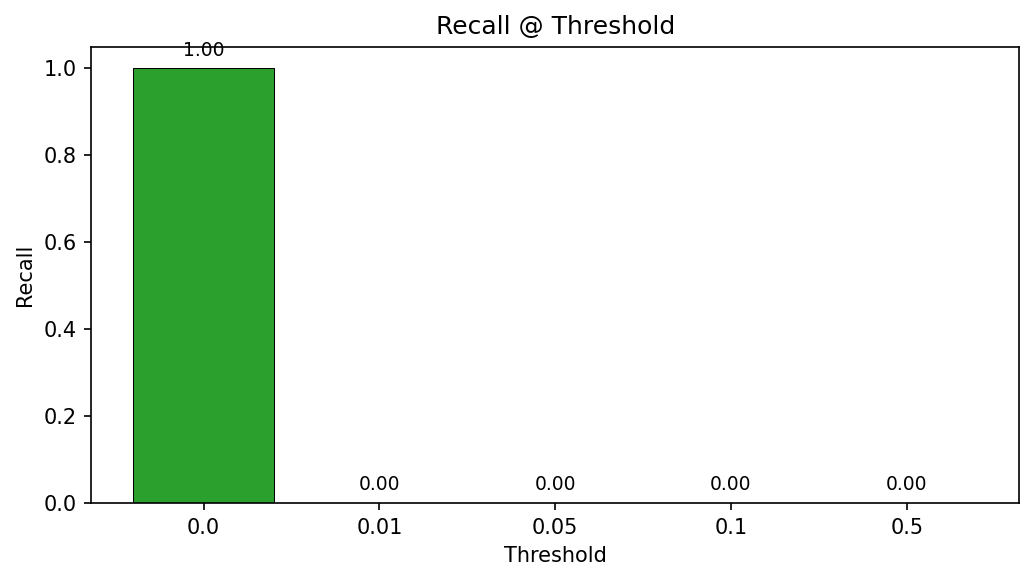

Recall at different thresholds

Bar chart of recall across thresholds shows recall of 1.0 at threshold 0.0 (all edges predicted) and 0.0 at higher thresholds for the untrained model, confirming the need for training to produce meaningful regulatory weights.

Ground truth GRN: 5 TFs x 20 genes
True regulatory edges: 20
Network density: 20.00%
Expression matrix shape: (100, 20)
Mean expression per TF: [ 9.930272   7.8756747 12.41507    6.1138577  9.022563 ]
Mean expression (targets): 11.52
Mean expr (strongly regulated): 11.52
Mean expr (weakly regulated): 9.07
GRN operator created: DifferentiableGRN
  hidden_dim=16, num_heads=4, sparsity_temp=0.1
Inferred GRN matrix shape: (5, 20)
TF activity shape: (100, 5)
GRN value range: [-0.0000, -0.0000]
GRN sparsity (fraction near zero, |w| < 0.01): 1.0000
 Threshold    TP    FP    FN  Precision     Recall
--------------------------------------------------
      0.00    20    80     0     0.2000     1.0000
      0.01     0     0    20     0.0000     0.0000
      0.05     0     0    20     0.0000     0.0000
      0.10     0     0    20     0.0000     0.0000
      0.50     0     0    20     0.0000     0.0000
GRN Inference:
  Gradient shape: (100, 20)
  Non-zero: True
  Finite: True
TF Activity:
  Gradient shape: (100, 20)
  Non-zero: True
  Finite: True
GRN JIT matches eager: True
TF activity JIT matches eager: True
  temp=0.01 -> sparsity: 1.0000, max |weight|: 0.0000
  temp=0.05 -> sparsity: 1.0000, max |weight|: 0.0000
  temp=0.10 -> sparsity: 1.0000, max |weight|: 0.0000
  temp=0.50 -> sparsity: 1.0000, max |weight|: 0.0001
  temp=1.00 -> sparsity: 0.8000, max |weight|: 0.0207
  heads=1, hidden=16 -> recall@0.01: 0.0000, max |w|: 0.0000
  heads=2, hidden=16 -> recall@0.01: 0.0000, max |w|: 0.0000
  heads=4, hidden=16 -> recall@0.01: 0.0000, max |w|: 0.0000
  heads=8, hidden=32 -> recall@0.01: 1.0000, max |w|: 12.6988
  n_cells= 20 -> recall@0.01: 0.0000, max |w|: 0.0000
  n_cells= 50 -> recall@0.01: 0.0000, max |w|: 0.0000
  n_cells=100 -> recall@0.01: 0.0000, max |w|: 0.0000
  n_cells=200 -> recall@0.01: 0.0000, max |w|: 0.0000
