Spatial Transcriptomics: Domain Identification and Slice Alignment¤

Duration: 25 min | Level: Advanced | Device: CPU-compatible

Overview¤

Applies DifferentiableSpatialDomain (STAGATE-inspired GATv2 autoencoder) for spatial domain identification on a synthetic 10x10 grid with 3 known domains, and DifferentiablePASTEAlignment (Sinkhorn optimal transport) for aligning two synthetic tissue slices. Evaluates spatial coherence, transport plan quality, and the effect of the alpha parameter on domain detection.

Quick Start¤

source ./activate.sh
uv run python examples/singlecell/spatial_analysis.py

Key Code¤

from diffbio.operators.singlecell import DifferentiableSpatialDomain, SpatialDomainConfig

config_domain = SpatialDomainConfig(
    n_genes=30, hidden_dim=32, num_heads=4, n_domains=3, alpha=0.8, n_neighbors=8,
)
domain_op = DifferentiableSpatialDomain(config_domain, rngs=nnx.Rngs(0))

data_domain = {"counts": counts, "spatial_coords": spatial_coords}
result_domain, _, _ = domain_op.apply(data_domain, {}, None)
assignments = result_domain["domain_assignments"]

Results¤

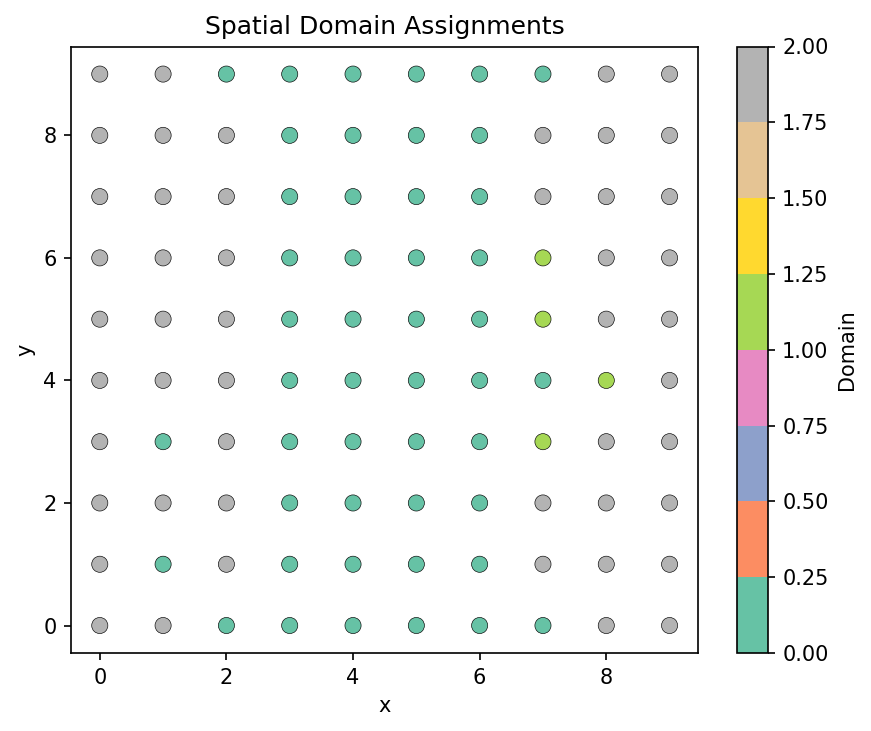

Spatial domain assignments

Scatter plot of the 10x10 spatial grid colored by predicted domain shows spatially coherent regions with 0.77 neighbor-level coherence (vs 0.33 random baseline).

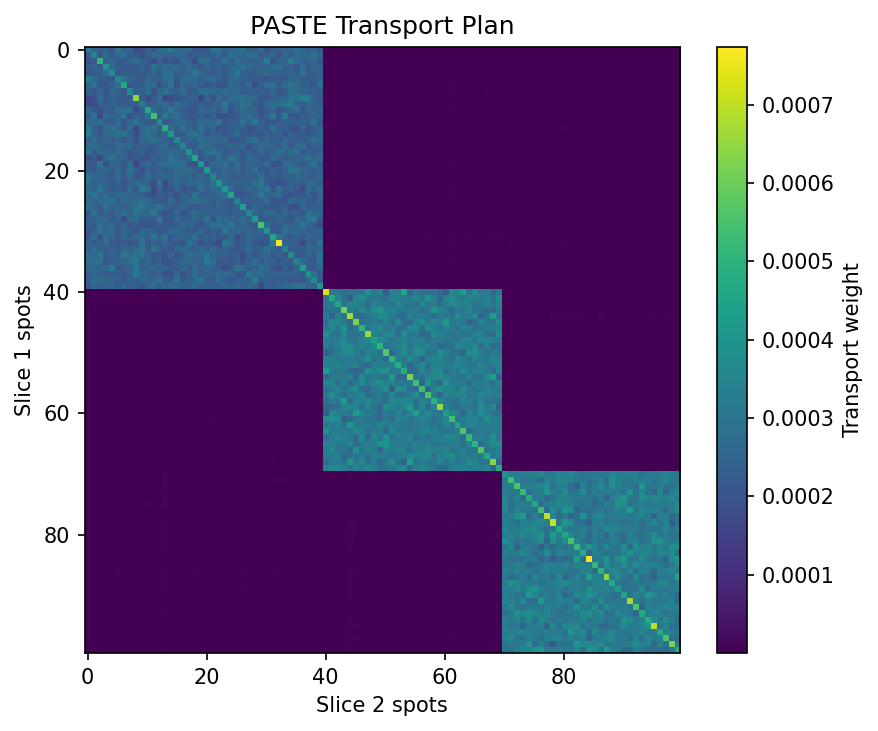

PASTE transport plan

Heatmap of the Sinkhorn transport plan between two slices shows concentrated diagonal structure, indicating correct spot-to-spot matching with mean alignment error of 2.69 and transport plan sum of 1.0.

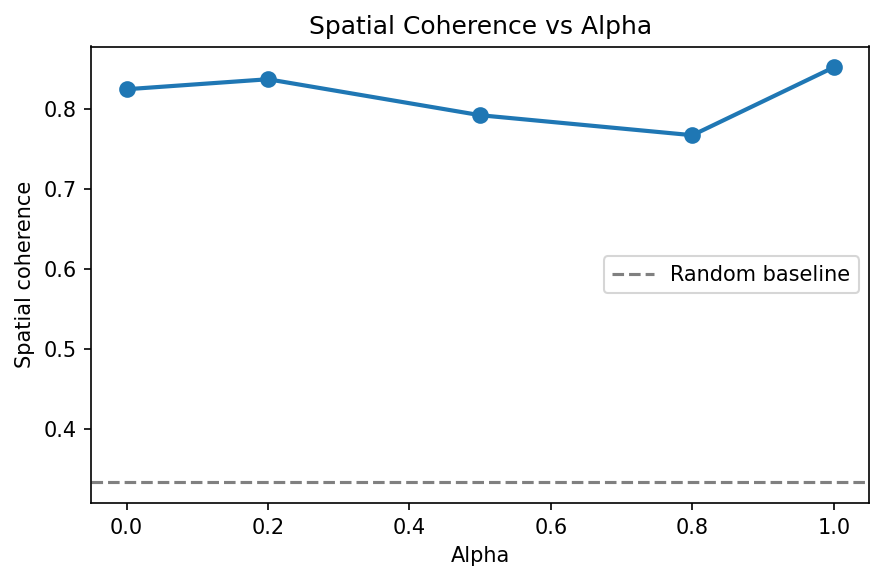

Spatial coherence vs alpha

Spatial coherence varies between 0.77-0.85 as alpha sweeps from 0.0 to 1.0, with alpha=1.0 (pruned mutual k-NN only) achieving highest coherence at 0.85 and highest confidence at 0.64.

Spatial coords shape: (100, 2)
Domain distribution: [40 30 30]
Expression shape: (100, 30)
SpatialDomain operator created: DifferentiableSpatialDomain
  hidden_dim=32, num_heads=4, n_domains=3
Domain assignments shape: (100, 3)
Spatial embeddings shape: (100, 32)
Predicted domain distribution: [47  4 49]
Spatial coherence (fraction of neighbors with same domain): 0.7675
  Random baseline (1/3): 0.3333
Mean assignment confidence: 0.5835
PASTE alignment operator created: DifferentiablePASTEAlignment
Transport plan shape: (100, 100)
Aligned coords shape: (100, 2)
Transport plan sum: 1.0000 (should be ~1.0)
Alignment error (mean Euclidean distance): 2.6868
Alignment error (max): 4.7633
Transport plan entropy: 8.1529 (max uniform: 92103.4062)
SpatialDomain:
  Gradient shape (counts): (100, 30)
  Non-zero: True
  Finite: True
PASTE Alignment:
  Gradient shape (slice1_counts): (100, 30)
  Non-zero: True
  Finite: True
SpatialDomain JIT matches eager: True
PASTE JIT matches eager: True
  alpha=0.0 -> coherence: 0.8250, confidence: 0.4500
  alpha=0.2 -> coherence: 0.8375, confidence: 0.4290
  alpha=0.5 -> coherence: 0.7925, confidence: 0.4846
  alpha=0.8 -> coherence: 0.7675, confidence: 0.5835
  alpha=1.0 -> coherence: 0.8525, confidence: 0.6415
  alpha=0.0 -> alignment error: 2.6705, plan max: 0.000895
  alpha=0.1 -> alignment error: 2.6868, plan max: 0.000774
  alpha=0.3 -> alignment error: 2.7177, plan max: 0.000601
  alpha=0.5 -> alignment error: 2.7602, plan max: 0.000554
  alpha=0.9 -> alignment error: 3.4396, plan max: 0.000327
