RNA Secondary Structure Prediction¤

This example demonstrates how to predict RNA secondary structure using DiffBio's differentiable RNA folding operator.

Overview¤

RNA secondary structure (base pairing patterns) is critical for:

  • Understanding RNA function
  • Designing antisense oligonucleotides
  • Predicting miRNA targets
  • Analyzing ribozymes and riboswitches

DiffBio implements the McCaskill partition function algorithm in a differentiable manner, enabling gradient-based optimization of RNA structure predictions.

Prerequisites¤

import jax
import jax.numpy as jnp
from flax import nnx

from diffbio.operators.rna_structure import (
    DifferentiableRNAFold,
    RNAFoldConfig,
)

Step 1: Encode RNA Sequence¤

RNA sequences use one-hot encoding similar to DNA:

# RNA sequence (should form a stem-loop)
rna_str = "GCGCAAUAGC"

# Encode: A=0, C=1, G=2, U=3
nuc_map = {"A": 0, "C": 1, "G": 2, "U": 3}
rna_indices = jnp.array([nuc_map[n] for n in rna_str])
rna_seq = jax.nn.one_hot(rna_indices, 4)

print(f"RNA sequence: {rna_str}")
print(f"Sequence length: {len(rna_str)}")
print(f"Encoded shape: {rna_seq.shape}")

Output:

RNA sequence: GCGCAAUAGC
Sequence length: 10
Encoded shape: (10, 4)

Step 2: Create RNA Fold Predictor¤

# Configure the folding predictor
config = RNAFoldConfig(
    temperature=1.0,        # Boltzmann temperature (1.0 = 37°C)
    min_hairpin_loop=3,     # Minimum hairpin loop size
)
rngs = nnx.Rngs(42)
predictor = DifferentiableRNAFold(config, rngs=rngs)

Step 3: Predict Structure¤

# Predict secondary structure
data = {"sequence": rna_seq}
result, _, _ = predictor.apply(data, {}, None)

bp_probs = result["bp_probs"]
log_z = result["partition_function"]

print(f"Base pair probability matrix shape: {bp_probs.shape}")
print(f"Log partition function: {float(log_z):.4f}")

Output:

Base pair probability matrix shape: (10, 10)
Log partition function: 5.3061

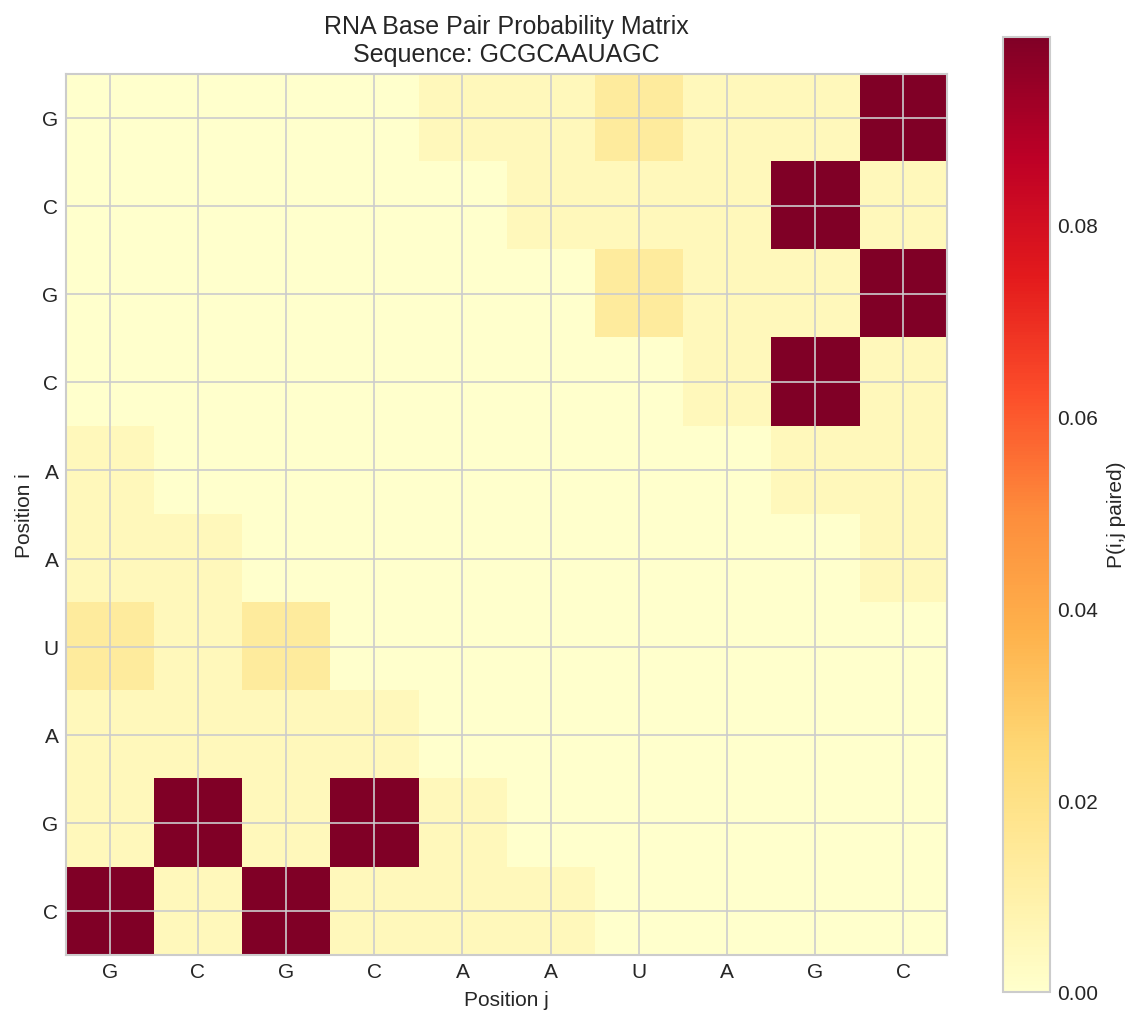

Base Pair Probability Matrix

Base pair probability matrix showing the probability of each position pairing with another. Higher values (brighter colors) indicate more probable pairs.

Step 4: Analyze Base Pair Probabilities¤

Find high-probability base pairs:

# Find high-probability base pairs
threshold = 0.01  # 1% probability threshold

print(f"\nHigh probability pairs (p > {threshold}):")
for i in range(len(rna_str)):
    for j in range(i + 1, len(rna_str)):
        prob = float(bp_probs[i, j])
        if prob > threshold:
            print(f"  {rna_str[i]}{i+1}-{rna_str[j]}{j+1}: {prob:.4f}")

Output:

High probability pairs (p > 0.01):
  G1-U7: 0.0135
  G1-C10: 0.0997
  C2-G9: 0.0997
  G3-U7: 0.0135
  G3-C10: 0.0997

Understanding the Output¤

Base Pair Probability Matrix¤

The bp_probs matrix contains the probability \(P(i,j)\) that positions \(i\) and \(j\) form a base pair:

\[P(i,j) = \frac{Z_{ij}}{Z}\]

where \(Z\) is the partition function and \(Z_{ij}\) is the partition function over structures containing the (i,j) base pair.

Partition Function¤

The log partition function log_z measures the total statistical weight of all possible structures:

\[Z = \sum_S e^{-E(S)/RT}\]

A larger partition function indicates more possible structures (more structural flexibility).

Visualizing Structure¤

Convert probabilities to dot-bracket notation:

def probabilities_to_structure(bp_probs, threshold=0.5):
    """Convert base pair probabilities to dot-bracket notation."""
    n = bp_probs.shape[0]
    structure = ['.'] * n

    # Find pairs above threshold
    for i in range(n):
        for j in range(i + 1, n):
            if bp_probs[i, j] > threshold:
                structure[i] = '('
                structure[j] = ')'

    return ''.join(structure)

# Get predicted structure
predicted_structure = probabilities_to_structure(bp_probs, threshold=0.05)
print(f"Sequence:  {rna_str}")
print(f"Structure: {predicted_structure}")

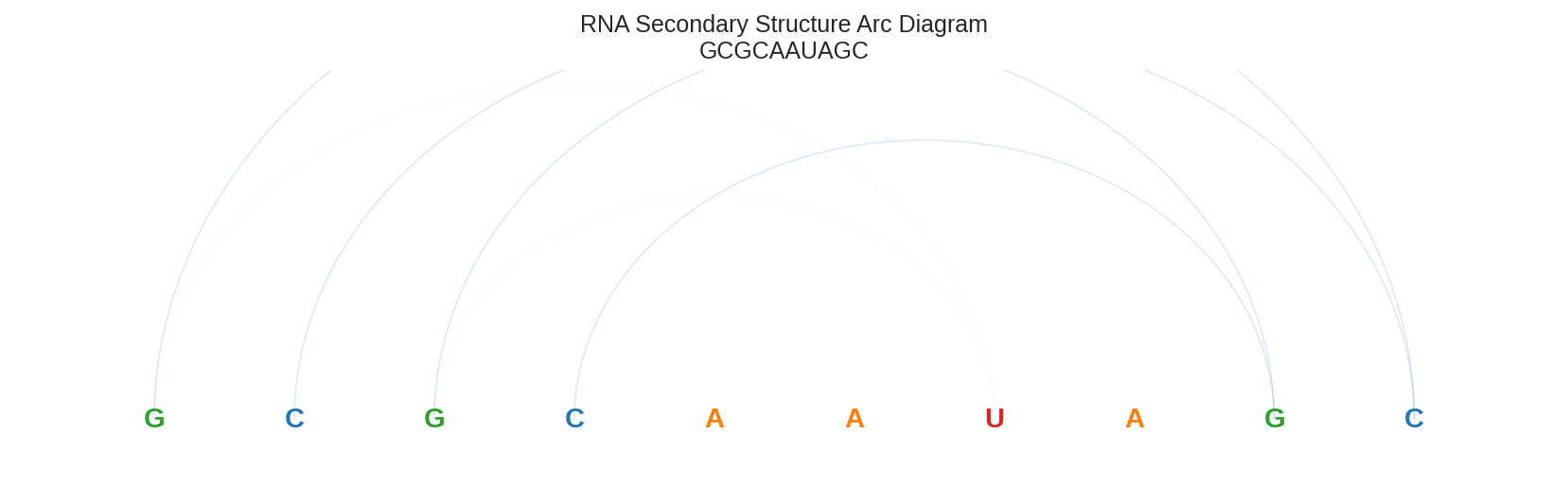

RNA Arc Diagram

Arc diagram visualization of RNA secondary structure. Arcs connect base pairs with arc height proportional to pairing probability.

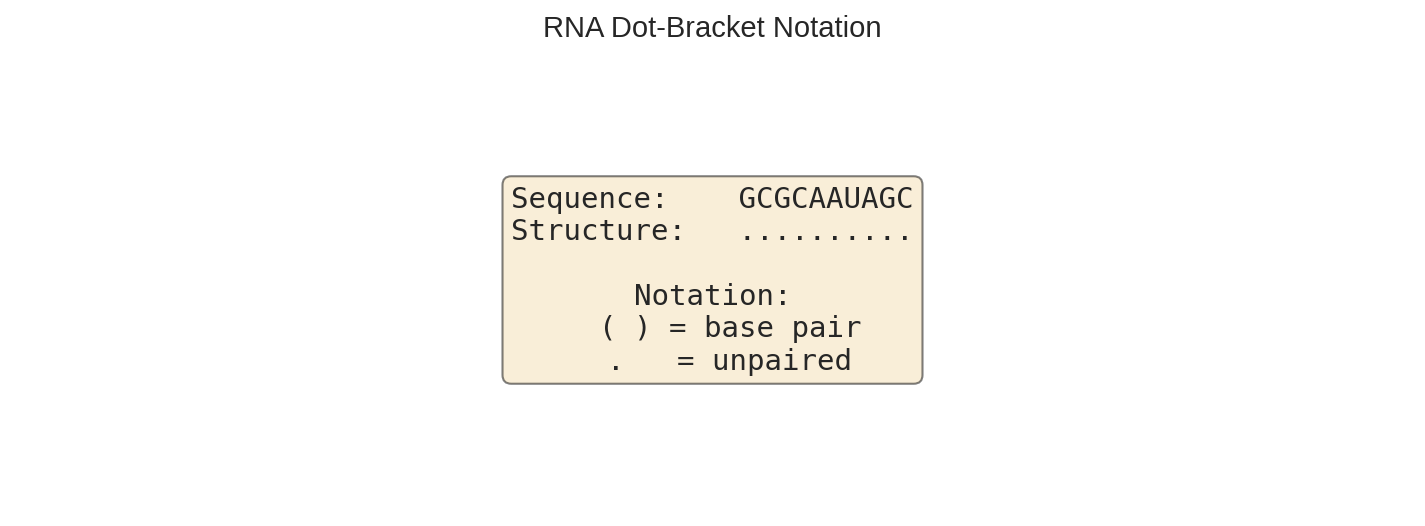

RNA Dot-Bracket Visualization

Dot-bracket notation with paired bases shown as parentheses and unpaired bases as dots.

Differentiability¤

The RNA folding operator is fully differentiable:

def structure_loss(predictor, data):
    """Loss function based on structure."""
    result, _, _ = predictor.apply(data, {}, None)
    # Maximize partition function (minimize folding energy)
    return -result["partition_function"]

# Compute gradients
grads = nnx.grad(structure_loss)(predictor, data)
print("Gradient computation: SUCCESS")

This enables:

  • Sequence design: Optimize sequences for desired structures
  • Thermodynamic parameter learning: Learn folding parameters from data
  • End-to-end RNA analysis: Integrate folding into larger pipelines

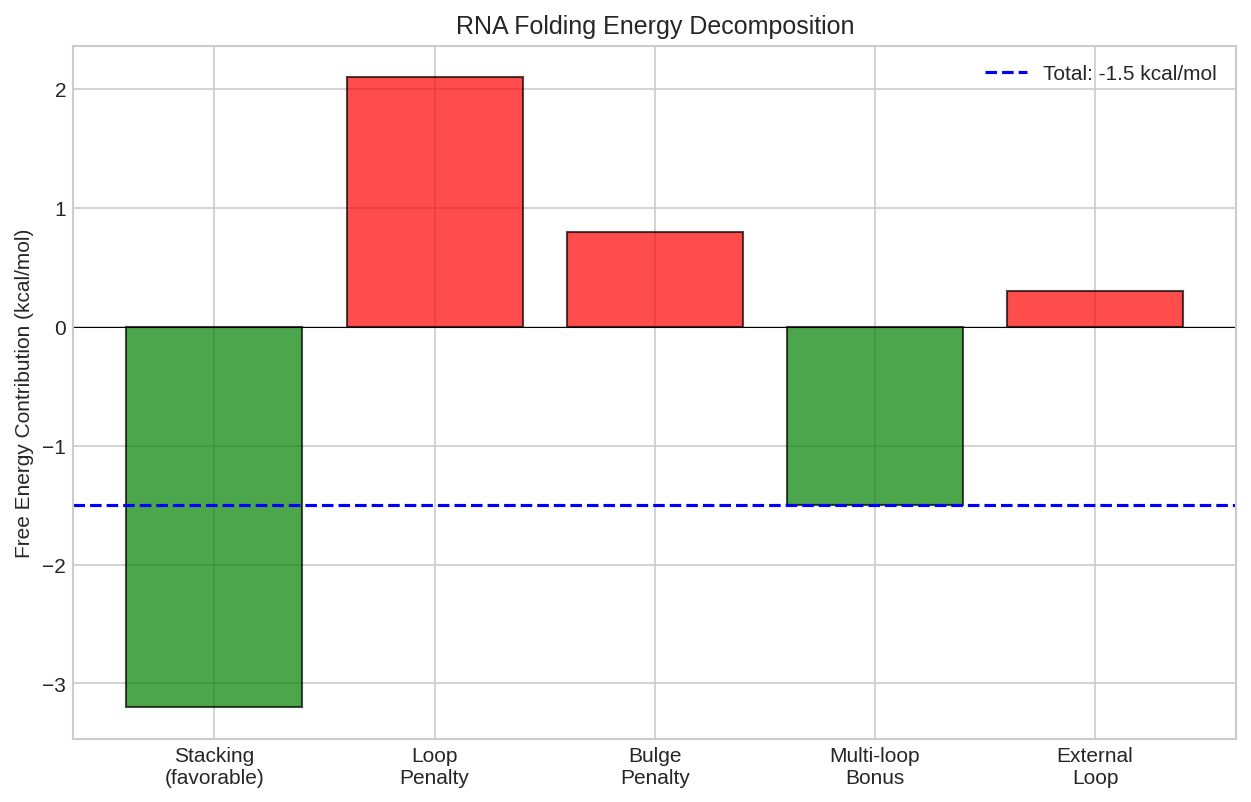

Partition Function Decomposition

Partition function contributions showing how different structural features contribute to the total statistical weight.

Valid Base Pairs¤

The algorithm considers standard Watson-Crick and wobble pairs:

Pair Type
A-U Watson-Crick
G-C Watson-Crick
G-U Wobble

Configuration Options¤

Parameter Description Default
temperature Boltzmann temperature (1.0 = 37°C) 1.0
min_hairpin_loop Minimum unpaired bases in hairpin 3
